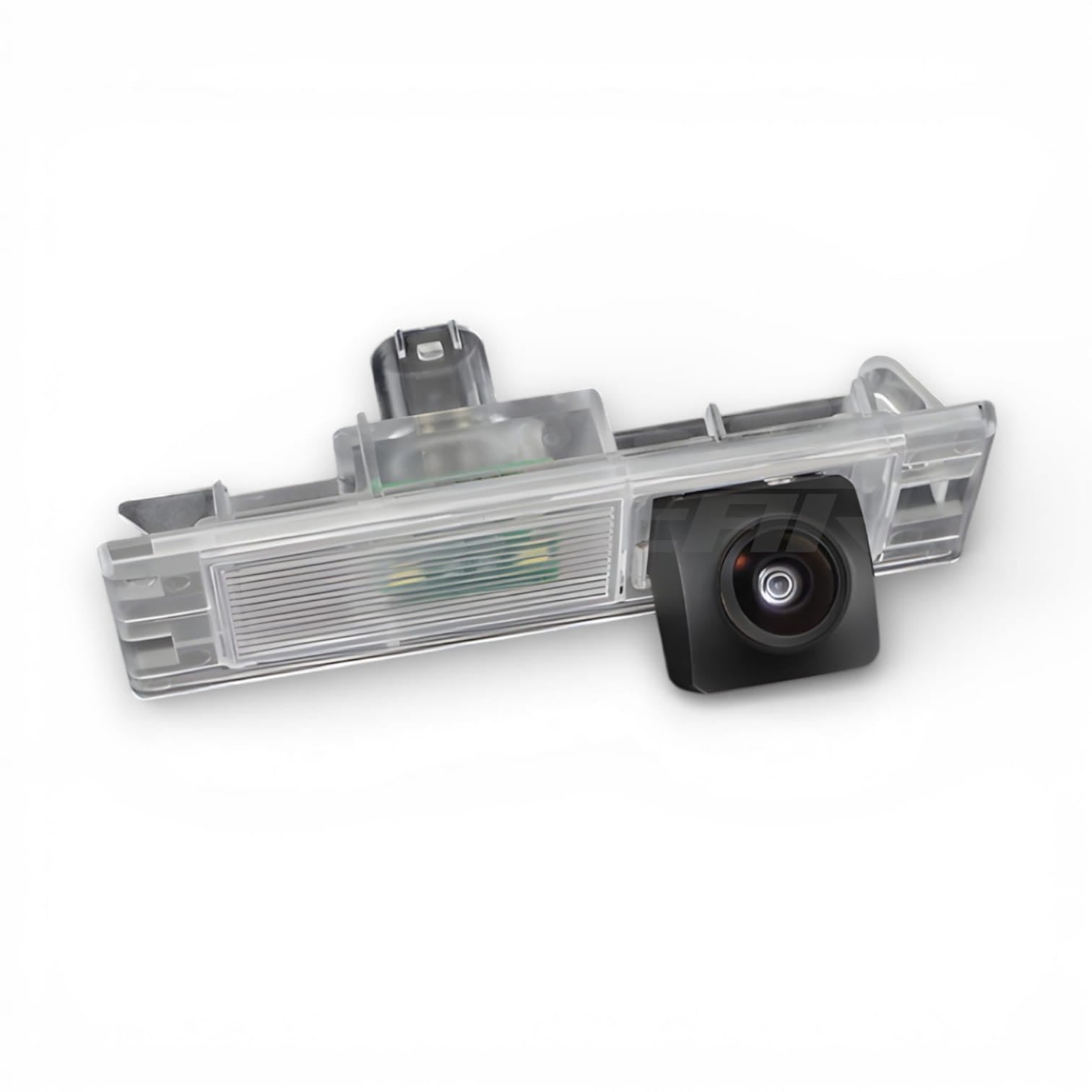

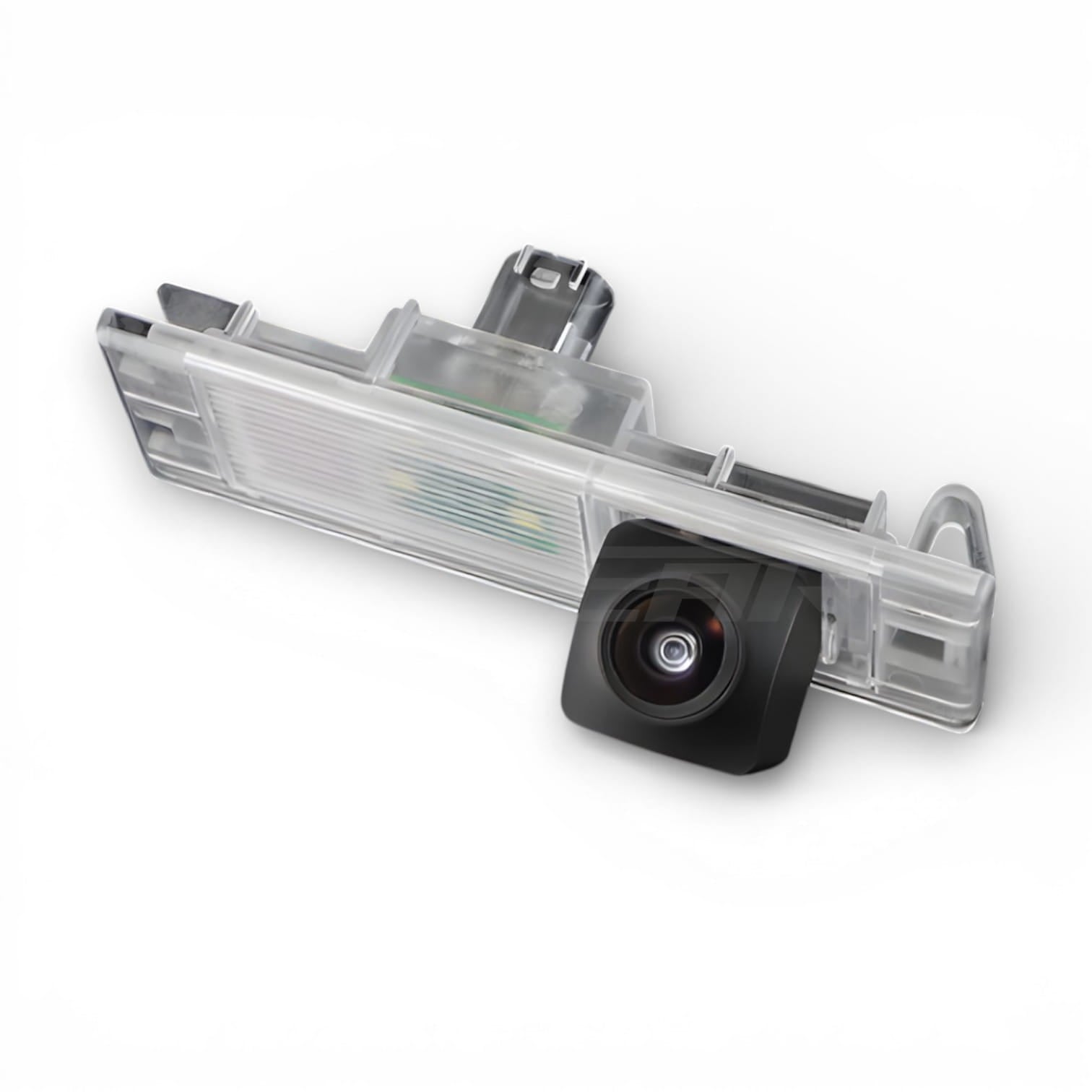

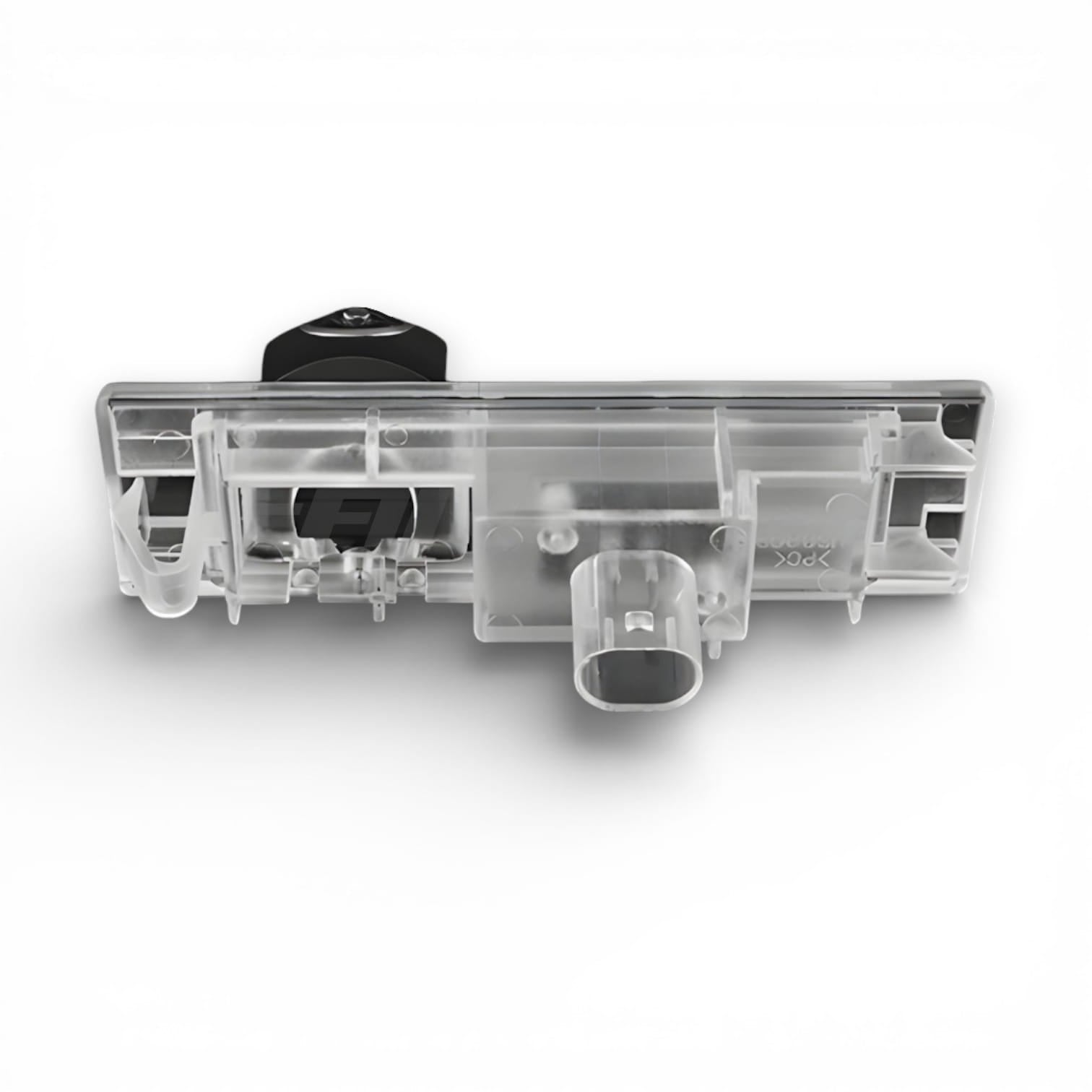

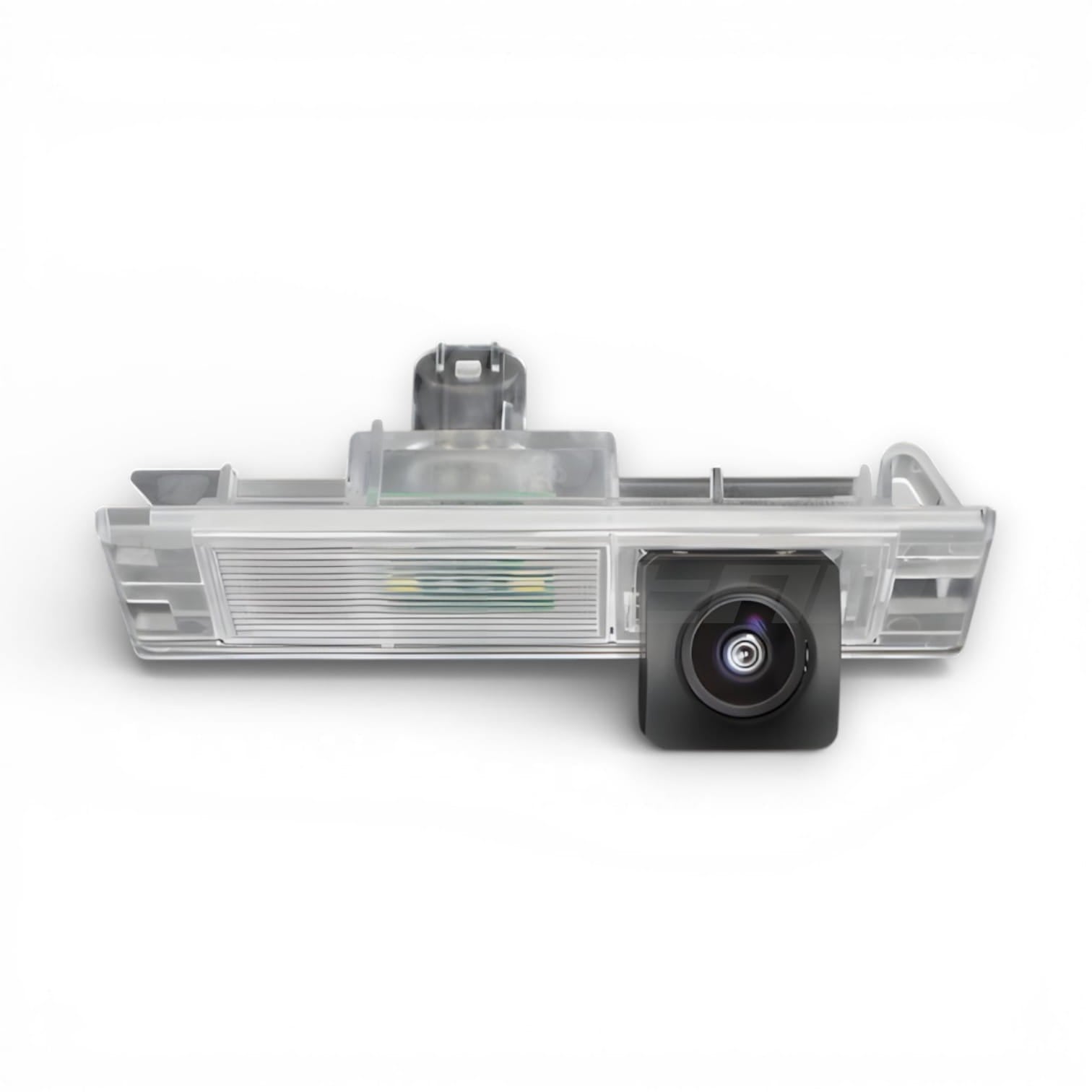

BMW HD Reverse Camera | License Plate Light Replacement

The BMW HD Reverse Camera is a license plate light replacement camera designed to deliver a clear, wide-angle rear view when reversing. Ideal for BMW models that do not use a trunk handle camera design, this unit integrates directly into the license plate light housing while retaining full illumination for the number plate. Built specifically for use with aftermarket multimedia systems such as MMI interface kits and touchscreen upgrades, this camera provides excellent visibility, advanced night vision, and reliable all-weather performance.

The BMW License Plate Light Replacement HD Reverse Camera provides a simple and effective way to add reversing camera functionality to compatible BMW models. The camera replaces the factory license plate light housing while maintaining full illumination of the number plate, ensuring a clean OEM-style installation.

Equipped with a wide-angle fisheye lens and high-definition image sensor, the system captures a broad rear field of view to help eliminate blind spots when reversing or parking. The integrated starlight night vision technology ensures clear visibility even in low-light conditions.

This reverse camera is designed specifically for vehicles equipped with aftermarket multimedia systems such as BMW MMI interface modules or touchscreen upgrades. It is not suitable for use with the original factory BMW head unit.

Features

• License plate light replacement camera with integrated number plate illumination
• 170° wide viewing angle for improved rear coverage
• Starlight night vision with visibility over 10 meters
• Supports AHD and CVBS video signals
• Compatible with aftermarket MMI modules and touchscreen systems
• Not compatible with factory BMW head units
• IP68 / IP69 waterproof rating for reliable all-weather performance
• High-quality HD Sony / OV2053HD camera sensor
• Automatic gain control, white balance, and backlight compensation
• Durable automotive-grade construction
• 1-year full warranty included

Fitment

Specifications

• Viewing Angle: 155° – 175° visible range
• Camera Sensor: HD Sony / OV2053HD
• Lens: 14 / 16mm 6-glass fisheye lens
• Signal Formats: NTSC / PAL
• Video Output: AHD or CVBS
• Resolution: AHD 1920×1080P (PAL) or 1280×720P (NTSC)
• CVBS Resolution: 1280×720P
• Night Vision: Starlight night vision with visibility over 10 meters
• Image Processing: Automatic gain control, auto white balance, auto backlight compensation
• Waterproof Rating: IP68 / IP69
• Power Supply: DC 12V – 24V, 2A
• Maximum Power Consumption: 3W
• Operating Temperature: -30°C to +70°C
• Camera Size: 103mm × 32mm

Available Options

• AHD 1080P: Full HD high-definition video output for maximum image clarity.
• AHD 720P / CVBS 720P: Dual-mode camera. Cutting the white wire switches from AHD to CVBS signal for compatibility with older displays.

What’s Included

• License plate light replacement HD reverse camera
• 6-meter video cable
• Power cable
